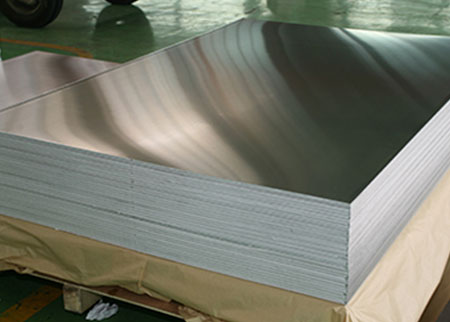

1050 Aluminum Sheet

Tel:+86-371-65621391

Condition: New
Delivery port: Qingdao or Tianjin port, China
Payment term: L/C, T/T
Guarantee period: 12 months
Delivery time: 10-15 days after received deposit
Installation time: 20days

Product Details

Properties of 1050 Aluminum Sheet

1050 aluminum sheet belongs to commercially pure wrought family with a purity of 99.5% Aluminum. Except Al, 0.4% of Fe is added to 1050 aluminum sheet, thus, it has high electrical conductivity. 1000 series aluminum group offers the best correction resistance compared to any alloy group, so does the 1050 aluminum sheet. Haomei can manufacture and supply high quality aluminum sheet 1050 with 20 years experience. Besides, different tempers are available, such as O (annealed), H12, H14, H18, etc.

Elements	Si	Fe	Cu	Mn	Mg	Cr	Zn		Ti	Others		Al
Content	0.25	0.40	0.05	0.05	0.05	-	0.07		0.05	0.15		Remain
Alloy Temper	Specified				Tensile strength			Yield strength			Elongation
	Thickness(mm)				(MPa)			(MPa)			(%)
1050-O/ 1050-H111	0.2-0.5				65-95			Min20			Min20
	0.5-1.5										Min22
	1.5-3.0										Min26
	3.0-6.0										Min29
	6.0-12.5										Min35
	12.5-80.0
1050-H112	6.0-12.5				Min75			Min30			Min20
	12.5-80.0				Min70			Min25
1050-H12	0.2-0.5				85-125			Min65			Min2
	0.5-1.5										Min4
	1.5-3.0										Min5
	3.0-6.0										Min7
	6.0-12.5										Min9
	12.5-40.0
1050-H14	0.2-1.5				105-145			Min85			Min2
	1.5-3.0										Min4
	3.0-6.0										Min5
	6.0-12.5										Min6
	12.5-25
1050-H16	0.2-0.5				120-160			Min100			Min1
	0.5-1.5										Min2
	1.5-4.0										Min3
1050-H18	0.2-0.5				Min135			Min120			Min1
	0.5-1.5				Min140						Min2
	1.5-3.0										Min2
1050-H19	0.2-0.5				Min155			Min140			Min1
	0.5-1.5				Min150			Min130
	1.5-3.0
1050-H22	0.2-0.5				85-125			Min55			Min4
	0.5-1.5										Min5
	1.5-3.0										Min6
	3.0-6.0										Min11
	6.0-12.5										Min12
1050-H24	0.2-0.5				105-145			Min75			Min3
	0.5-1.5										Min4
	1.5-3.0										Min5
	3.0-6.0										Min8
	6.0-12.5
1050-H26	0.2-0.5				120-160			Min90			Min2
	0.5-1.5										Min3
	1.5-4.0										Min4
1050-H28	0.2-0.5				Min140			Min110			Min2
	0.5-1.5
	1.5-3.0										Min3

Features and Applications of 1050 Aluminum Sheet

For its content above in the chart, 1050 aluminum sheet has high ductility and high reflective finish. Besides, 1050 aluminum sheet is non-heat treatment series is produced in extruded sections. It has excellent cold workability, braze-ability and solder-ability, and it is strengthened by cold working. However, 1050 aluminum plate has low mechanical strength compared to more significantly alloyed metals. All of these characteristics make 1050 aluminum sheet well suited to chemical and electrolytic brightening but not in casting. Last but not least, moderate strength and good anodizing quality enables our products has a vast application.
