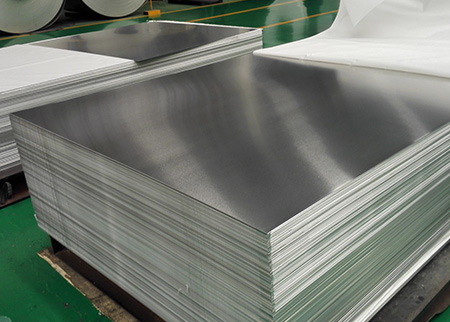

1060 Aluminum Sheet

Properties of 1060 Aluminum Sheet

1060 aluminum sheet is pretty similar to 1050 aluminum alloy with more than 0.1% of aluminum by weight. Both 1050 and 1060 aluminum sheet of Haomei Aluminum lives up to ISO standards, but they cover different ASTM standards. 1060 aluminum sheet contains 0.05% cooper, thus, its conductivity is 55%. Besides, 1060 aluminum sheet is relatively low strength, essentially pure aluminum alloy with many different tempers, such as O (annealed), H12, H14, H16, H18, etc. what’s more, other aluminum sheet belonging to commercial pure wrought family are available, including 1050, 1070, 1100 and so on and so forth

Elements	Si	Fe	Cu	Mn	Mg	Cr	Zn		Ti	Others			Al
Content (max)	0.25	0.35	0.05	0.03	0.03	-	0.05		0.03	0.15			Remain
Alloy  Temper	Specified				Tensile strength			Yield strength				Elongation
	Thickness(in.)				(ksi)			(ksi)				(%)
1060-O (annealed)	0.006-0.019				8.0-14.0			2.5				Min15
	0.020-0.050											Min22
	0.051-3.000											Min25
1060-H12/ 1060-H22	0.017-0.050				11.0-16.0			9.0				Min6
	0.051-2.000											Min12
1060-H14/ 1060-H24	0.006-0.019				12.0-17.0			10.0				Min1
	0.020-0.050											Min5
	0.051-1.000											Min10
1060-H16/ 1060-H26	0.006-0.019				14.0-19.0			11.0				Min1
	0.020-0.050											Min4
	0.051-0.162											Min5
1060-H18/ 1060-H28	0.006-0.019				Min16.0			Min12.0				Min1
	0.020-0.050											Min3
	0.051-0.128											Min4
1060-H112	0.250-0.499				Min11.0			Min7.0			Min10
	0.500-1.000				Min10.0			Min5.0			Min20
	1.001-3.000				Min9.0			Min4.0			Min25

Features and Applications of 1060 Aluminum Sheet

1060 aluminum sheet is noted for its excellent welding characteristics and formability by cold or hot working with commercial techniques. It cannot be hardened by heat treatment but only from cold working. Tempers H12, H14, H16 and H18 are determined by the amount of cold working imparted into the alloy. Moreover, 1060 aluminum sheet has good corrosion resistance as well as poor machine-ability, and its machine-ability can be improved in harder (cold working) tempers, such as H16 and H18. For its features above, 1060 aluminum sheet has a vast application, such as electric and chemical equipment, railroad tank cars, etc.
