Aluminum Mirror Reflectors

Tel:+86-371-65621391
  • Condition: New
  • Delivery port: Qingdao or Tianjin port, China
  • Payment term: L/C, T/T
  • Guarantee period: 12 months
  • Delivery time: 10-15 days after received deposit
  • Installation time: 20days
Product Details

Aluminum Mirror Specifications


Alloy: 1050, 1060, 1085, 1100, 3003
Temper: various status
Thickness: 0.1mm-6.0mm
Width: 1000mm-2300mm
Length: 1000mm-11000mm
Anodizing aluminum sheet

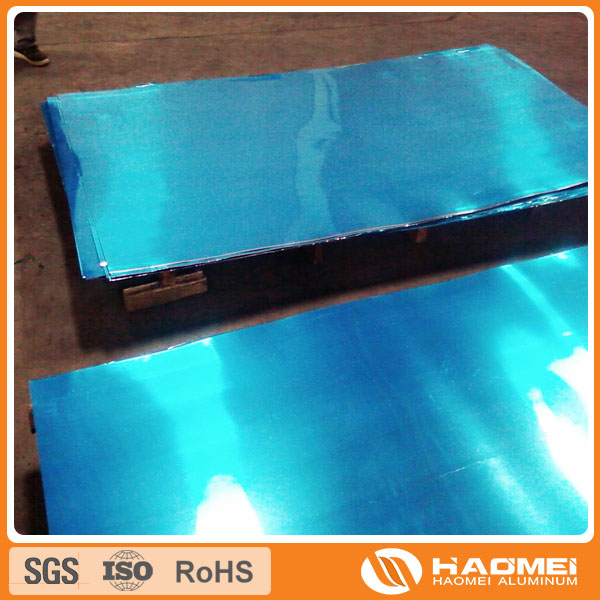

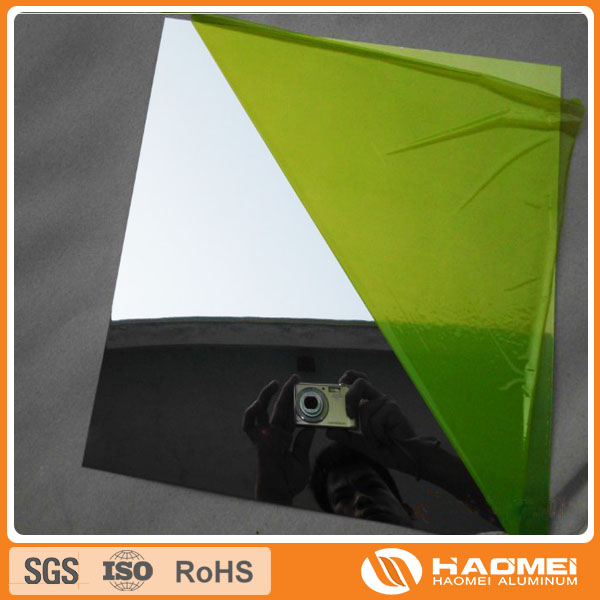

Mirror anodized aluminum sheet/reflective aluminum sheet

The most advantage for mirror/reflective aluminum sheet for wall material, such as the building exterior curtain walls/renovations for old building, the mirror/reflective aluminum sheet for shop door decorations, advertisement board display platforms and signboards, or wallboards and ceiling for tunnels, or industrial materials.

Production process:

  1. Frond side: aluminum alloy sheet coated with fluro—carbon resin (PVDF) or polyester resin (PE) roasting painting
  2. Back side: aluminum alloy sheet coated with polyester resin painting (PE)
  3. Surface coating thickness: 0.03mm
  4. Surface process: Polishing, Glossy, Anodized, Plain, or Embossed.

The purity of aluminum is the main effect of mirror surfaces.haomei Aluminum selection of the 1080 (99.80%)high-purity aluminum, to ensure the mirror reflective rate of 85% or more, with resolutions up to 94% .

Aluminum mirror must have a good and easy formability, aluminum mirror of the haomei Aluminum production are suitable for semi-hard state of bending to ensure that the user post-molding process.

The flatness of the mirror surface aluminum also affect the imaging of the important reasons, haomei  Aluminum purchased Tension Leveler from German, the aluminum surface roughness close to 100%.

Terms Thickness(mm) Width(mm) Total reflective Diffuse Along Clarity
Data 0.15-0.80 1350Under 85% <20 >80 92
Tolerance ±0.02 ±2 ±1 ±0.5 ±1 ±2
